Architecture Powerpack & CAD Basics COMBO

PowerBlocks is a collection of AutoCAD Blocks and CAD Standards that help you create better architectural drawings quick and easy. Discover everything included in the full package:

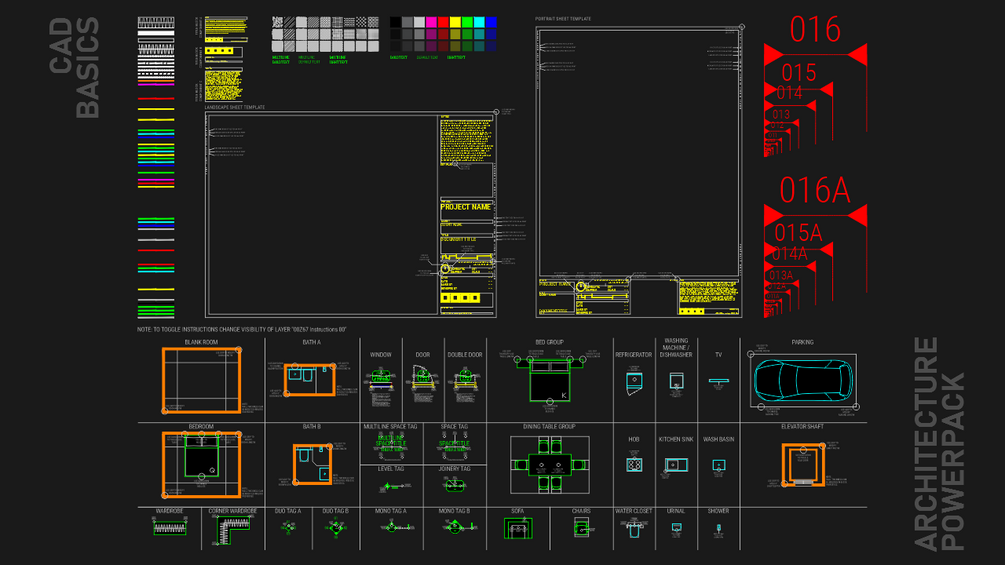

INCLUDED IN ARCHITECTURE POWERPACK AND CAD BASICS COMBO:

• 5 dynamic room blocks (Resizable, modifiable blocks of entire rooms!)
• Dynamic door & window blocks with included joinery tags
• Dynamic furniture blocks including bed, dining table, sofa, chair, and wardrobe
• Dynamic kitchen objects, bathroom objects & appliance blocks
• Dynamic annotation blocks including space tags, elevation & section tags, level tag and joinery tag
• 67 easy to use layers (35 primary layers and 32 extra layers for special cases)
• 2 dynamic sheet template blocks (Portrait & landscape)
• 54 hatches, 3 text styles & 32 dimension styles (16 primary + 16 alternative-unit dimension styles)
• 6 .CTB styles (Contains lineweight settings)
• Illustrated instructions manual (Instructions also provided inside .DWG file for easy use)
• Metric and Imperial unit files

ROOM BLOCKS ‎ ‎ |‎ ‎ ‎ PLACE, RESIZE AND REPOSITION ENTIRE ROOMS.

PowerBlocks Room Blocks combine all parts of a room, including walls and furniture into powerful individual blocks which can be quickly placed and modified as you want. PowerBlocks includes a bedroom block, two types of bathroom blocks, a multi purpose blank-room block and an elevator block.

Combine multiple blocks with openings for complex room shapes. Use MULTILINE command to add thick exterior walls. Want more control? These room blocks include options for changing wall thickness, bed size, bed position, basin position and more. These room blocks alone can speed up your architectural drafting by up to 200%.

DOORS & WINDOWS ‎ ‎ |‎ ‎ ‎ JUST DRAG AND DROP.

PowerBlocks Door & Window Blocks can be directly placed on walls without drafting openings. Easily change width, wall thickness, and select from 9 doors types or 15 window types. Includes built-in automatically updating joinery tags.

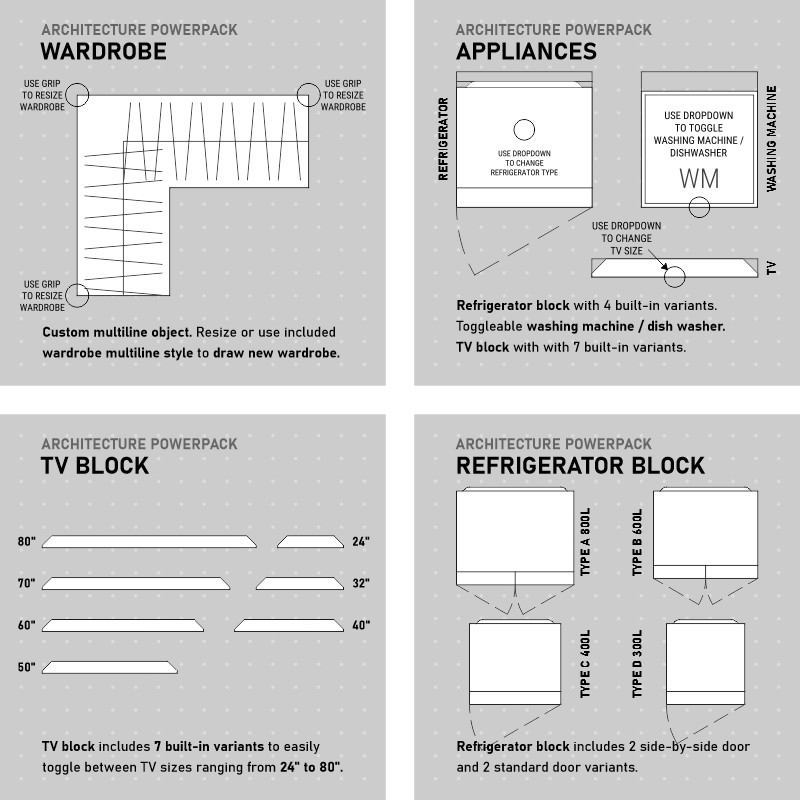

FURNITURE & APPLIANCES ‎ ‎ |‎ ‎ ‎ ONE BLOCK, MANY VARIANTS.

Each PowerBlocks Furniture & Appliance Block combines MANY variants into a SINGLE block. Change bed size, number of dining chairs, chair type - all with simple drop-down menus - so you don't waste time searching through your blocks for the right type.

PowerBlocks Furniture and Appliance Blocks include bed, dining, sofa, chair, wardrobe, TV, refrigerator, laundry / dryer, hob, kitchen sink, basin, shower, urinal, and water closet blocks.

PowerBlocks Furniture & Appliance Blocks include options for toggling and resizing bed side tables, toggling sofa arm rests, modifying number of sofa seats, and more. PowerBlocks aims to be the only AutoCAD blocks collection you will ever need.

ANNOTATION BLOCKS ‎ ‎ |‎ ‎ ‎ FOR PROFESSIONAL DRAWINGS

PowerBlocks Annotation Blocks include 2 space tags, 2 elevation & section tags, joinery tag and level tag.

Just place the Space Tag Block and drag grips to room corners to AUTOMATICALLY display room dimensions, without manually measuring and typing. Use a simple drop down menu to change room dimensions to metric units, imperial units, or to hide dimensions and show only room title.

Just double click to edit text values for space title, elevation title and joinery title.

Use simple drop down menus to change the elevation tag into a section tag / change joinery tag size / change level tag symbol to indicate finished or unfinished levels.

LAYERS & LINEWEIGHTS ‎ ‎ |‎ ‎ ‎ PERFECT RESULTS IN JUST 3 STEPS.

PowerBlocks CAD Basics includes 37 layers (+32 extra layers for special cases) with simple, easy to understand names. Just use these layers and plot your drawings with one of the 6 .CTB files provided to get consistently perfect drawings every time. No more manually settings line weights - it's all already taken care of for you.

SHEET TEMPLATE BLOCKS

PowerBlocks includes 2 Sheet Template Blocks for landscape and portrait sheets. Each block includes 3 built-in title block sizes and features such as adjustable & togglable north point, drop-down menu for changing document type, drop-down menu for changing units type, and MORE, all packed into a single AutoCAD block.

Just double click to edit title block text values. The sheet template blocks automatically suggest the ideal text size and dimension style to use for readability. Take the guess-work out of making great drawings with PowerBlocks Sheet Template Blocks.

HATCHES, TEXT STYLES & DIMENSION STYLES

PowerBlocks includes 54 hatches, 3 text styles, and 32 dimension styles. (16 primary dimension styles + 16 alternative-unit dimension styles). Just match properties to effortlessly make organized professional architectural drawings.

WHY POWERBLOCKS?

With PowerBlocks Architecture Powerpack & CAD Basics Combo you and your team can focus on what’s important - designing amazing spaces faster than ever before and creating clean, consistent architectural drawings effortlessly.

Unlock a massive upgrade to your architectural design and documentation process. Purchase PowerBlocks and get started today.
